Item # ML1000-015D

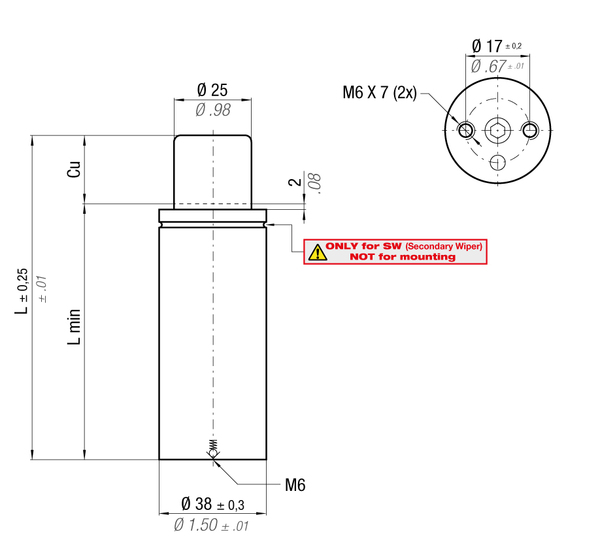

38MM DIA X 15MM STROKE
Click image to enlarge
Specifications
| Outside Diameter (in) | 1.5 |
| Outside Diameter (mm) | 38 |
| Overall Length (in) | 3.35 |
| Overall Length (mm) | 85 |
| Force (lb) | 2203 |
| Force (daN) | 980 |
| Stroke Length (in) | .59 |
| Stroke Length (mm) | 15 |
| Maintenance Kit | 39BMML01000C |
